FLEXI 210
FLEXI 210

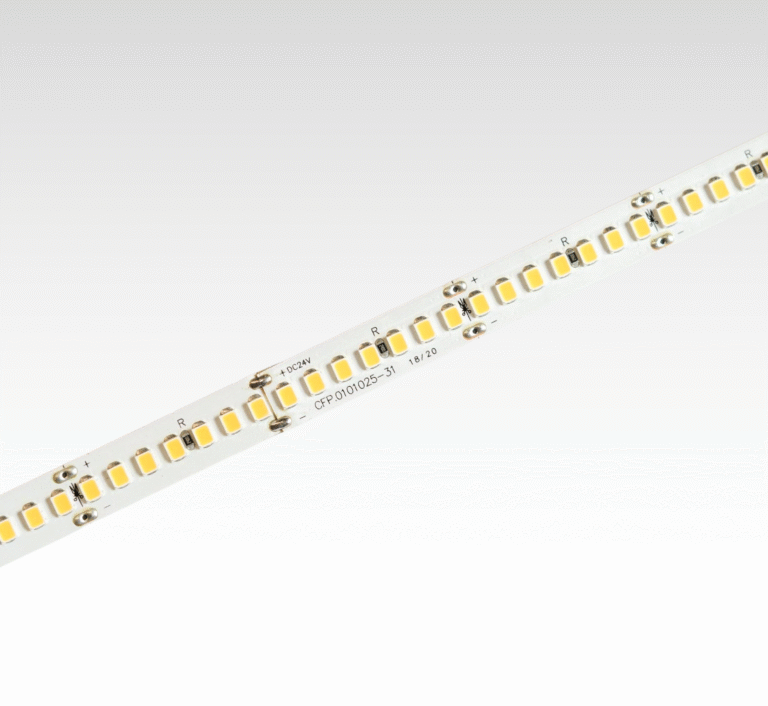

High-Efficiency LED Strip for Precision Lighting
- Flexi Lexi series features a slim, low-profile design suitable for seamless integration.
- Built with high-efficiency SMD LEDs, it delivers consistent, uniform illumination.
- The strip supports various dimming options and can be paired with compatible channels and diffusers to achieve tailored lighting effects for different applications.
Luminaire Specification
| System Power (W) | 6 / 9 / 12 / 15 / 18 / 21 /24 |
| LED Color Temperature (K) | 2700 / 3000 / 4000 / 5000 / 6500 |
| Beam Angle | 115° |
| CRI | 90 |
| Dimension (mm) | 10 x 5000 (L) |
| Cutting Increment (mm) | 33.32 |
| IP Rating | IP20 |
| Dimming Control | Phase Cut / 0-10V / DALI / Casambi |
Luminaire Specification
| System Power (W) | 6 / 9 / 12 / 15 / 18 /21 /24 |
| Dimension (mm) | 10 x 5000 (L) |
| Beam Angle | 115° |
| CRI | 90 |
| SDCM | < 3 |
| Cutting Increment (mm) | 33.32 |
| Lifetime (L80B10) | 50,000 hrs |
| IP Rating | IP20 |
| Dimming Control | Phase cut / 0-10V / DALI / Casambi |
| Warranty | 5 years |
Details
| Product Code | Lumen Output (lm) | Efficacy (lm/W) | CRI | Downloads | |||
|---|---|---|---|---|---|---|---|
| 3FX210627 | 6 | 2700 | 115° | 678 | 113.0 | 90 | IES |
| 3FX210630 | 6 | 3000 | 115° | 713.4 | 118.9 | 90 | IES |
| 3FX210640 | 6 | 4000 | 115° | 730.8 | 121.8 | 90 | IES |
| 3FX210650 | 6 | 5000 | 115° | 730.8 | 121.8 | 90 | IES |
| 3FX210927 | 9 | 2700 | 115° | 1004.4 | 111.6 | 90 | IES |
| 3FX210930 | 9 | 3000 | 115° | 1057.5 | 117.5 | 90 | IES |
| 3FX210940 | 9 | 4000 | 115° | 1082.7 | 120.3 | 90 | IES |
| 3FX210950 | 9 | 5000 | 115° | 1082.7 | 120.3 | 90 | IES |
| 3FX2101227 | 12 | 2700 | 115° | 1322.4 | 110.2 | 90 | IES |
| 3FX2101230 | 12 | 3000 | 115° | 1392 | 116.0 | 90 | IES |
| 3FX2101240 | 12 | 4000 | 115° | 1426.8 | 118.9 | 90 | IES |
| 3FX2101250 | 12 | 5000 | 115° | 1426.8 | 118.9 | 90 | IES |
| 3FX2101527 | 15 | 2700 | 115° | 1633.5 | 108.9 | 90 | IES |
| 3FX2101530 | 15 | 3000 | 115° | 1719 | 114.6 | 90 | IES |
| 3FX2101540 | 15 | 4000 | 115° | 1761 | 117.4 | 90 | IES |
| 3FX2101550 | 15 | 5000 | 115° | 1761 | 117.4 | 90 | IES |
| 3FX2101827 | 18 | 2700 | 115° | 1935 | 107.5 | 90 | IES |
| 3FX2101830 | 18 | 3000 | 115° | 2037.6 | 113.2 | 90 | IES |
| 3FX2101840 | 18 | 4000 | 115° | 2088 | 116.0 | 90 | IES |
| 3FX2101850 | 18 | 5000 | 115° | 2088 | 116.0 | 90 | IES |
| 3FX2102127 | 21 | 2700 | 115° | 2230.2 | 106.2 | 90 | IES |
| 3FX2102130 | 21 | 3000 | 115° | 2345.7 | 111.7 | 90 | IES |
| 3FX2102140 | 21 | 4000 | 115° | 2404.5 | 114.5 | 90 | IES |
| 3FX2102150 | 21 | 5000 | 115° | 2404.5 | 114.5 | 90 | IES |
| 3FX2102427 | 24 | 2700 | 115° | 2515 | 104.8 | 90 | IES |
| 3FX2102430 | 24 | 3000 | 115° | 2646.6 | 110.3 | 90 | IES |
| 3FX2102440 | 24 | 4000 | 115° | 2713 | 113.0 | 90 | IES |
| 3FX2102450 | 24 | 5000 | 115° | 2713 | 113.0 | 90 | IES |
