Orion Mini
ORION MINI
APPLICATIONS : Retail | Gallery
- The Orion series offers precision track lighting with a sleek, low-profile design.
- Featuring adjustable heads and tunable white, it delivers optimal illumination control.
- Compatible with DALI, 0-10V, and wireless dimming.
- Ensuring high-performance, flicker-free lighting for galleries, hospitality, and architectural applications.
Luminaire Specification
| CCT | 2700 / 3000 / 3500 / 4000 / 5000 |
| Beam Angle | 15° / 24° / 38° / 60° |
| CRI | 90 |
| SDCM | < 3 |
| Lifetime | 50,000 hrs |
| Control | Phase Cut / 0-10V / DALI / Casambi |
| IP Rating | 20 |
| Dimension (mm) | Φ 54 x 110 |
| Housing Color | White / Black |
| Installation | Track Mounted |
| Warranty | 5 years |

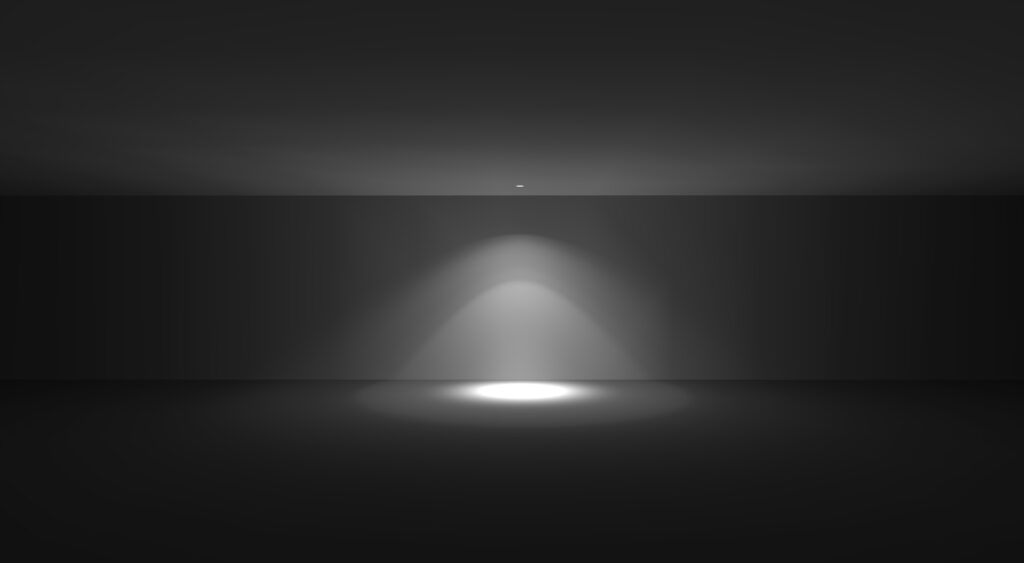

Lighting Effect
15°
24°
38°
60°
Luminaire Specification
| CCT | 2700 / 3000 / 3500 / 4000 / 5000 |
| Beam Angle | 15° / 24° / 38° / 60° |
| CRI | 90 |
| SDCM | < 3 |
| Lifetime | 50,000 hrs |
| Control | Phase Cut / 0-10V / DALI / Casambi |
| IP Rating | 20 |
| Dimension (mm) | Ø54 x 110 |
| Housing Color | White / Black |
| Reflector Color | Black |
| Installation | Track Mounted |
| Warranty | 5 years |
Details
| Product Code | Lumen Output (lm) | Efficacy (lm/W) | CRI | Downloads | |||
|---|---|---|---|---|---|---|---|
| 2TROMN1292715D | 12 | 2700 | 15° | 1086 | 89 | 90 | IES |
| 2TROMN1292724D | 12 | 2700 | 24° | 1127 | 92 | 90 | IES |
| 2TROMN1292738D | 12 | 2700 | 38° | 1127 | 92 | 90 | IES |
| 2TROMN1292760D | 12 | 2700 | 60° | 1083 | 88 | 90 | IES |
| 2TROMN1293015D | 12 | 3000 | 15° | 1179 | 96 | 90 | IES |
| 2TROMN1293024D | 12 | 3000 | 24° | 1184 | 97 | 90 | IES |
| 2TROMN1293038D | 12 | 3000 | 38° | 1185 | 97 | 90 | IES |
| 2TROMN1293060D | 12 | 3000 | 60° | 1138 | 93 | 90 | IES |
| 2TROMN1293515D | 12 | 3500 | 15° | 1179 | 96 | 90 | IES |
| 2TROMN1293524D | 12 | 3500 | 24° | 1227 | 100 | 90 | IES |
| 2TROMN1293538D | 12 | 3500 | 38° | 1233 | 101 | 90 | IES |
| 2TROMN1293560D | 12 | 3500 | 60° | 1202 | 98 | 90 | IES |
| 2TROMN1294015D | 12 | 4000 | 15° | 1219 | 100 | 90 | IES |
| 2TROMN1294024D | 12 | 4000 | 24° | 1274 | 105 | 90 | IES |
| 2TROMN1294038D | 12 | 4000 | 38° | 1279 | 105 | 90 | IES |
| 2TROMN1294060D | 12 | 4000 | 60° | 1233 | 102 | 90 | IES |
| 2TROMN1295015D | 12 | 5000 | 15° | 1195 | 100 | 90 | IES |
| 2TROMN1295024D | 12 | 5000 | 24° | 1246 | 104 | 90 | IES |
| 2TROMN1295038D | 12 | 5000 | 38° | 1244 | 104 | 90 | IES |
| 2TROMN1295060D | 12 | 5000 | 60° | 1199 | 100 | 90 | IES |
| 2TROMN1592715D | 15 | 2700 | 15° | 1357 | 89 | 90 | IES |
| 2TROMN1592724D | 15 | 2700 | 24° | 1408 | 92 | 90 | IES |
| 2TROMN1592738D | 15 | 2700 | 38° | 1409 | 92 | 90 | IES |
| 2TROMN1592760D | 15 | 2700 | 60° | 1353 | 88 | 90 | IES |
| 2TROMN1593015D | 15 | 3000 | 15° | 1409 | 92 | 90 | IES |
| 2TROMN1593024D | 15 | 3000 | 24° | 1480 | 97 | 90 | IES |
| 2TROMN1593038D | 15 | 3000 | 38° | 1481 | 97 | 90 | IES |
| 2TROMN1593060D | 15 | 3000 | 60° | 1423 | 93 | 90 | IES |
| 2TROMN1593515D | 15 | 3500 | 15° | 1474 | 96 | 90 | IES |
| 2TROMN1593524D | 15 | 3500 | 24° | 1534 | 100 | 90 | IES |
| 2TROMN1593538D | 15 | 3500 | 38° | 1541 | 101 | 90 | IES |
| 2TROMN1593560D | 15 | 3500 | 60° | 1503 | 98 | 90 | IES |
| 2TROMN1594015D | 15 | 4000 | 15° | 1524 | 100 | 90 | IES |
| 2TROMN1594024D | 15 | 4000 | 24° | 1593 | 105 | 90 | IES |
| 2TROMN1594038D | 15 | 4000 | 38° | 1599 | 105 | 90 | IES |
| 2TROMN1594060D | 15 | 4000 | 60° | 1541 | 101 | 90 | IES |
| 2TROMN1595015D | 15 | 5000 | 15° | 1493 | 100 | 90 | IES |
| 2TROMN1595024D | 15 | 5000 | 24° | 1558 | 104 | 90 | IES |
| 2TROMN1595038D | 15 | 5000 | 38° | 1554 | 104 | 90 | IES |
| 2TROMN1595060D | 15 | 5000 | 60° | 1498 | 100 | 90 | IES |
Lighting Effect
15°
24°
38°
60°
Accessaries
Beam Elongator
Beam Soft Lens
Honeycomb
Snoot
